Version

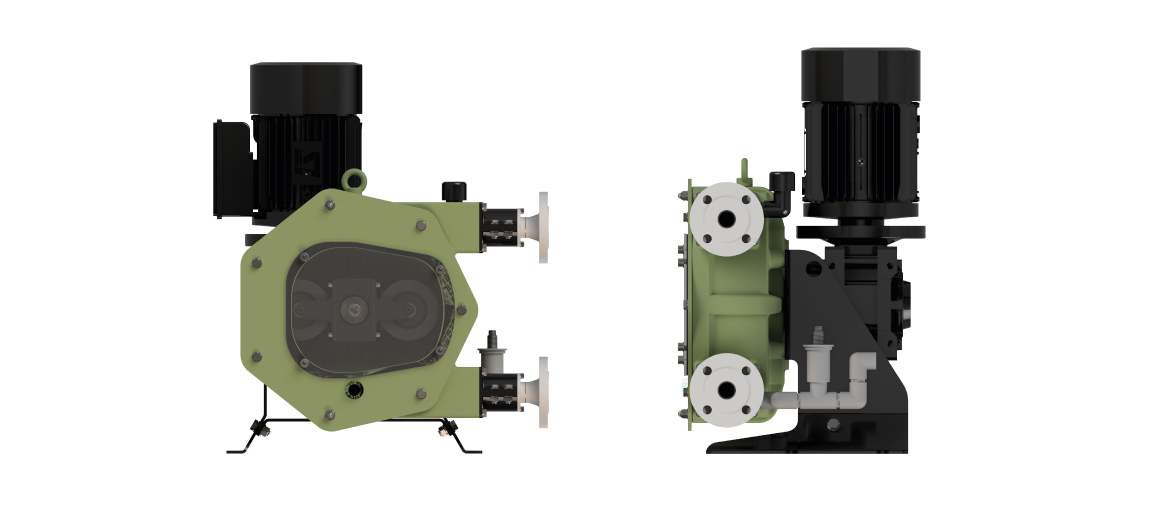

Hose pump for the chemical industry

This version provides the necessary changes to the equipment to create a product that is fully protected and resistant to attack by highly corrosive acids and all types of harsh chemicals.

Extremely resistant design with TEFZEL® coating on the body and front cover.

Plastic connections made of Polypropylene or PVDF and latest generation hose made of NR, EPDM or Hypalon®.

Hose leak sensor and product drainage system inside the body to prevent accumulation.

A very strong, robust and corrosion-resistant pump at a very competitive price.

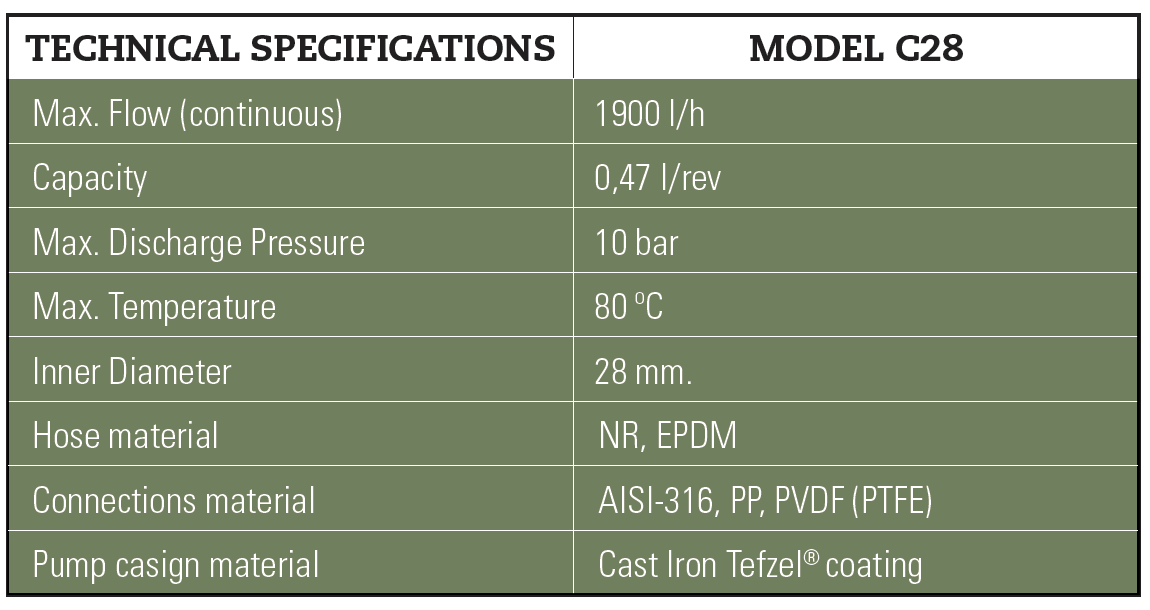

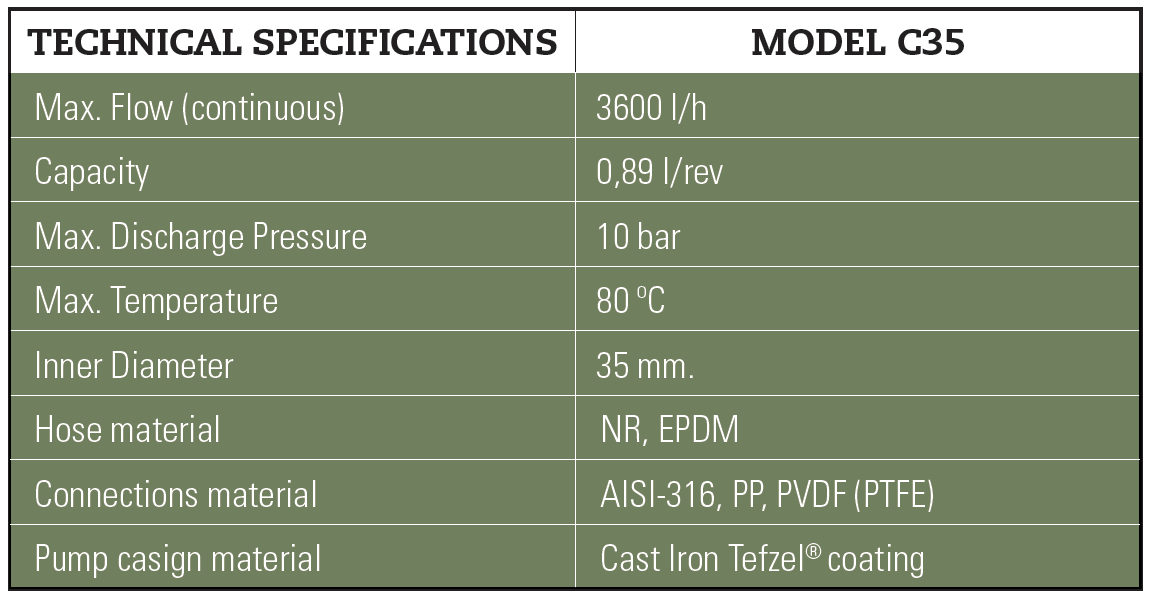

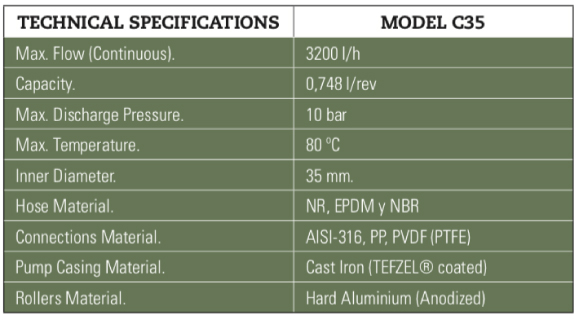

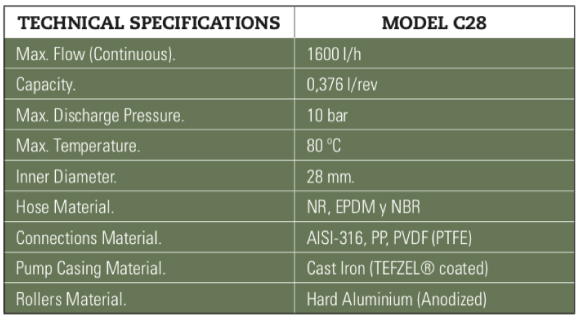

Technical specifications

Versión Química

FLOW RATE RANGE 5 to 20.000 l/h

MAXIMUM PRESSURE 10 bar

INNER DIAMETER 13 to 70 mm

MATERIAL OF CONNECTIONS AISI-316, PP, PVDF (PTFE)

CONNECTION TYPES BSP, DIN, NPT, ANSI

MATERIAL OF ROLLERS Hard aluminium (anodised) or nylon

MAX. TEMPERATURE 80ºC

MATERIAL OF HOSE NR, EPDM y Hypalon (hasta el modelo 21)
